Bailian LLM Calling Tutorial#

Available at MaxFrame 2.6.0

This tutorial explains how to access models in the Bailian public modelset from MaxFrame and run both text embedding and text generation workloads on DPE.

Key tasks covered:

Browse available models in BIGDATA_PUBLIC_MODELSET.
Inspect model metadata and inference parameters.
Run text embedding inference with embed().
Run text generation inference with generate().
Persist outputs to MaxCompute tables.

Prerequisites#

#	Requirement	Description
1	MaxCompute enabled	You need a MaxCompute project with valid Access ID / Access Key.
2	DPE engine enabled	Bailian AI Function calls in this workflow run through DPE.
3	Model compute service purchased	Purchase model compute service in MaxCompute console; an inference quota is created and billed by usage.
4	Supported region	Ensure your MaxCompute project is in a region where Bailian model services are available.
5	Python version	Python 3.11 is recommended.
6	MaxFrame SDK version	Use MaxFrame SDK 2.6.0 or above (`pip install maxframe>=2.6.0`).

Model compute service and inference quota#

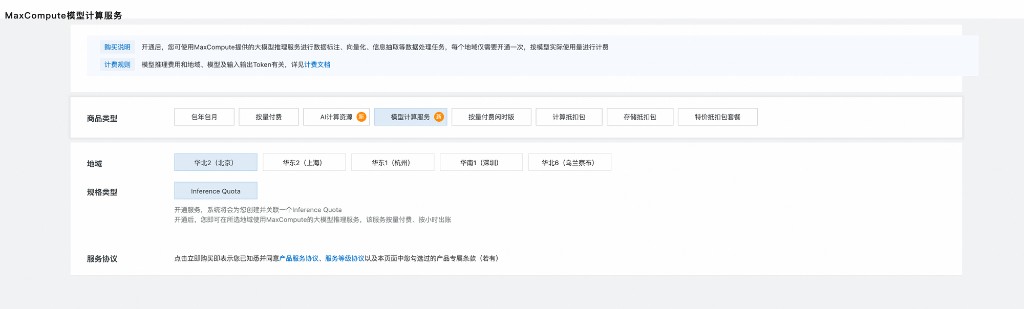

In MaxCompute console, purchase/enable model compute service and confirm the associated inference quota before running Bailian model inference.

1. Environment setup and session creation#

Check MaxFrame version:

import maxframe

assert maxframe.__version__ >= "2.6.0", (
    f"maxframe >= 2.6.0 is required, current version: {maxframe.__version__}. "
    f"Please run: pip install --upgrade maxframe"
)
print(f"maxframe version: {maxframe.__version__} ✓")

Imports:

import logging

import pandas as pd
import maxframe.dataframe as md
from maxframe import new_session
from maxframe.config import options
from maxframe.learn.utils import read_odps_model
from odps import ODPS

logging.basicConfig(level=logging.INFO)
pd.set_option("display.max_colwidth", None)
pd.set_option("display.max_columns", None)

Configure engine and create session:

o = ODPS(
    access_id="<your_access_id>",
    secret_access_key="<your_access_key>",
    endpoint="https://service.<region>.maxcompute.aliyun.com/api",
    project="<your_project_name>",
)

options.dag.settings = {"engine_order": ["DPE", "MCSQL"]}
options.session.inference_quota_name = "<your_inference_quota_name>"

session = new_session(o)
print(f"Session ID : {session.session_id}")
print(f"LogView    : {session.get_logview_address()}")

Note

Keep the LogView URL for troubleshooting. It is the main entry for worker logs and runtime diagnostics.

2. Browse Bailian public modelset#

available_models = list(o.list_models(project="bigdata_public_modelset"))
print(f"Available model count: {len(available_models)}")
for m in available_models:
    print(f"  - {m.name}")

3. Inspect model details#

model = o.get_model("text-embedding-v4", project="bigdata_public_modelset")

print(f"name: {model.name}")
print(f"type: {model.type}")
print(f"source_type: {model.source_type}")
print(f"options: {model.options}")
print(f"_feature_columns: {model._feature_columns}")
print(f"inference_parameters: {model.inference_parameters}")
print(f"_labels: {model._labels}")

4. Text embedding inference#

Load embedding model:

embedding_model = read_odps_model("text-embedding-v4", project="bigdata_public_modelset")
print(embedding_model)

Prepare input data:

query_list = [
    "What is the average distance from Earth to the Sun?",
    "When did the American Revolutionary War begin?",
    "What is the boiling point of water?",
    "How can I quickly relieve a headache?",
    "Who is the main character in Harry Potter?",
]

df = md.DataFrame({"query": query_list})

Run embed():

# simple_output=True returns the raw embedding data directly,
# skipping provider response metadata.
embedding_result = embedding_model.embed(
    df["query"],
    simple_output=True,
)

print("Output dtypes:")
print(embedding_result.dtypes)

Execute:

embedding_executed = embedding_result.execute()
print("Embedding result:")
print(embedding_executed)

5. Text generation inference#

Load generation model:

gen_model = read_odps_model("qwen3-max", project="bigdata_public_modelset")
print(gen_model)

Build prompt and run:

messages = [
    {"role": "system", "content": "You are a concise and accurate QA assistant."},
    {"role": "user", "content": "{query}"},
]

# simple_output=True returns the generated text directly,
# skipping the raw provider response structure.
gen_result = gen_model.generate(
    df,
    prompt_template=messages,
    simple_output=True,
)

gen_executed = gen_result.execute()
print("Generation result:")
print(gen_executed)

Optional persistence:

# md.to_odps_table(embedding_result, "bailian_embedding_results", overwrite=True).execute()
# md.to_odps_table(gen_result, "bailian_generate_results", overwrite=True).execute()

6. Cleanup#

session.destroy()
print("Session destroyed and resources released.")

Appendix: Bailian models vs built-in managed models#

Item	Bailian pre-registered models	Built-in managed models
Load API	`read_odps_model("name", project="bigdata_public_modelset")`	`ManagedTextGenLLM(name="...")`
Source	Models registered on Bailian platform	MaxFrame managed model catalog
Typical names	`text-embedding-v4`, `qwen3-max`	`qwen2.5-1.5b-instruct`, `DeepSeek-R1`
APIs	`generate()` / `embed()`	`generate()` / `embed()` / `translate()` / `extract()`

Managed model example:

from maxframe.learn.contrib.llm.models.managed import ManagedTextGenLLM

llm = ManagedTextGenLLM(name="qwen2.5-1.5b-instruct")
messages = [
    {"role": "system", "content": "You are a helpful assistant."},
    {"role": "user", "content": "{query}"},
]
# simple_output=True returns the generated text directly,
# skipping the raw provider response structure.
result = llm.generate(df, prompt_template=messages, simple_output=True)
result.execute()

Troubleshooting#

Issue	Cause	Resolution
`Engine DPE not available`	DPE is not enabled for the project	Ask your admin to enable DPE.
`Model not found`	Wrong model name or unsupported region	Check available names with `list_models()` and verify region support.
`inference_quota_name` error	Inference quota is not configured	Set a valid `options.session.inference_quota_name`.
`Session timeout`	Inference job timed out	Reduce batch size and inspect LogView logs.
`execute()` returns nothing	Lazy graph has not been triggered	Ensure `.execute()` is called.
